Hexagonal nut DIN934

Material：
Carbon steel, Stainless steel
Size：
M3-M30
Surface Treatment：
Galvanizing
Enquiry
Hexagonal nut DIN934
Hexagonal nut DIN934

Hexagonal nut DIN934

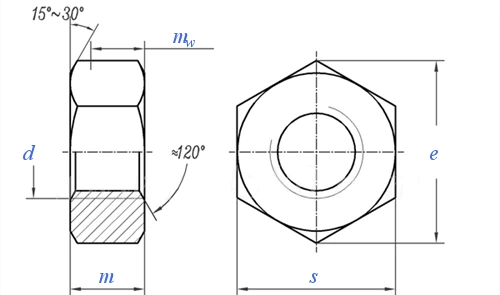

Dimensions: mm

Thread size
d
M1 M1.2 M1.4 M1.6 (M1.7) M2 (M2.3) M2.5 (M2.6) M3 (M3.5) M4 M5 M6 (M7) M8
P Pitch Coarse teeth
Fine teeth 1
Fine teeth 2
m Maximum value = nominal
Minimum
mw Minimum
s Maximum value = nominal
Minimum
e ① Minimum
*
Thousand pieces weight (steel) ≈ kg
0.25 0.25 0.3 0.35 0.35 0.4 0.45 0.45 0.45 0.5 0.6 0.7 0.8 1 1 1.25
/ / / / / / / / / / / / / / / 1
/ / / / / / / / / / / / / / / /
0.8 1 1.2 1.3 1.4 1.6 1.8 2 2 2.4 2.8 3.2 4 5 5.5 6.5
0.55 0.75 0.95 1.05 1.15 1.35 1.55 1.75 1.75 2.15 2.55 2.9 3.7 4.7 5.2 6.14
0.44 0.6 0.76 0.84 0.92 1.08 1.24 1.4 1.4 1.72 2.04 2.32 2.96 3.76 4.16 4.91
2.5 3 3 3.2 3.5 4 4.5 5 5 5.5 6 7 8 10 11 13
2.4 2.9 2.9 3.02 3.38 3.82 4.32 4.82 4.82 5.32 5.82 6.78 7.78 9.78 10.73 12.73
2.71 3.28 3.28 3.41 3.82 4.32 4.88 5.45 5.45 6.01 6.58 7.66 8.79 11.05 12.12 14.38
- - - - - - - - - - - - - - - -
0.03 0.054 0.063 0.076 0.1 0.142 0.2 0.28 0.72 0.384 0.514 0.81 1.23 2.5 3.12 5.2
Thread size
d
M10 M12 (M14) M16 (M18) M20 (M22) M24 (M27) M30 (M33) M36 (M39) M42 (M45) M48
P Pitch Coarse teeth
Fine teeth 1
Fine teeth 2
m Maximum value = nominal
Minimum
mw Minimum
s Maximum value = nominal
Minimum
e ① Minimum
*
Thousand pieces weight (steel) ≈ kg
1.5 1.75 2 2 2.5 2.5 2.5 3 3 3.5 3.5 4 4 4.5 4.5 5
1 1.5 1.5 1.5 1.5 2 1.5 2 2 2 2 3 3 3 3 3
1.25 1.25 / / 2 1.5 2 / / / / / / / / /
8 10 11 13 15 16 18 19 twenty two twenty four 26 29 31 34 36 38
7.64 9.64 10.3 12.3 14.3 14.9 16.9 17.7 20.7 22.7 24.7 27.4 29.4 32.4 34.4 36.4
6.11 7.71 8.24 9.84 11.44 11.92 13.52 14.16 16.56 18.16 19.76 21.92 23.52 25.9 27.5 29.1
17 19 twenty two twenty four 27 30 32 36 41 46 50 55 60 65 70 75
16.73 18.67 21.67 23.67 26.16 29.16 31 35 40 45 49 53.8 58.8 63.1 68.1 73.1
18.9 21.1 24.49 26.75 29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44 71.3 76.95 82.6
- - - - - - - - - - - - - - - -
11.6 17.3 25 33.3 49.4 64.4 79 110 165 223 288 393 502 652 800 977
Thread size
d
(M52) M56 (M60) M64 (M68) M72 (M76) M80 (M85) M90 M100 M110 M125 M140 M160
P Pitch Coarse teeth
Fine teeth 1
Fine teeth 2
m Maximum value = nominal
Minimum
mw Minimum
s Maximum value = nominal
Minimum
e ① Minimum
*
Thousand pieces weight (steel) ≈ kg
5 5.5 5.5 6 6 / / / / / / / / / /
3 4 4 4 / 6 6 6 6 6 6 6 6 6 6
/ / / / 4 4 4 4 4 4 4 4 4 / /
42 45 48 51 54 58 61 64 68 72 80 88 100 112 128
40.4 43.4 46.4 49.1 52.1 56.1 59.1 62.1 66.1 70.1 78.1 85.8 97.8 109.8 125.5
32.3 34.7 37.1 39.3 41.7 44.9 47.3 49.7 52.9 56.1 62.5 68.6 78.2 87.8 100
80 85 90 95 100 105 110 115 120 130 145 155 180 200 230
78.1 82.8 87.8 92.8 97.8 102.8 107.8 112.8 117.8 127.5 142.5 152.5 177.5 195.4 225.4
88.25 93.56 99.21 104.86 110.51 116.16 121.81 127.46 133.11 144.08 161.02 172.32 200.57 220.8 254.7
- - - - - - - - - - - 170 196 216 248
1220 1420 1690 1980 2300 2670 3040 3440 3930 4930 6820 8200 13000 17500 26500
