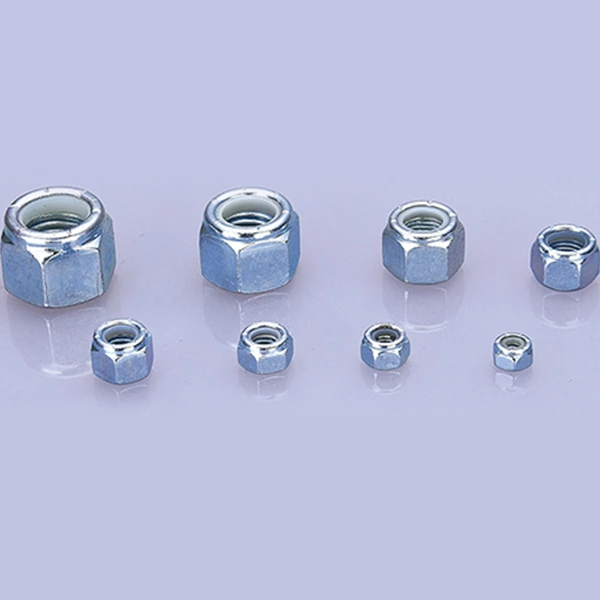

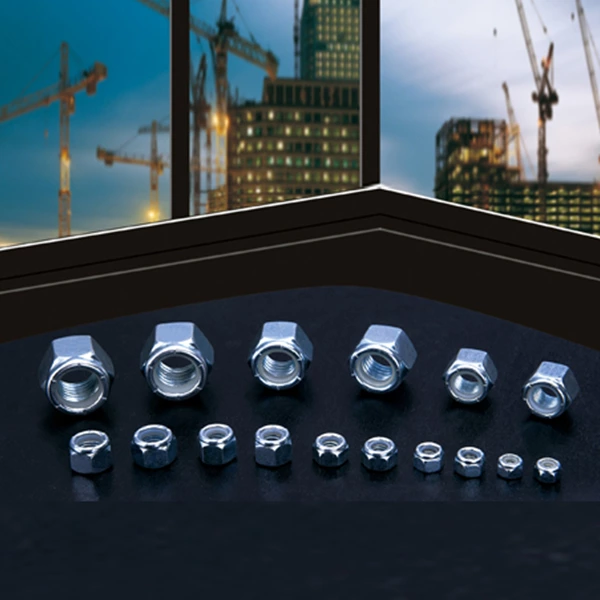

American nylon locking nut: NE type, NTE type

Material：: Carbon Steel
Size：: #6-2
Surface Treatment：: Galvanizing

Enquiry

American nylon locking nut: NE type, NTE type

American nylon locking nut: NE type, NTE type

American nylon locking nut: NE type, NTE type

American nylon locking nut: NE type, NTE type

Product Description

American nylon locking nut: NE type, NTE type

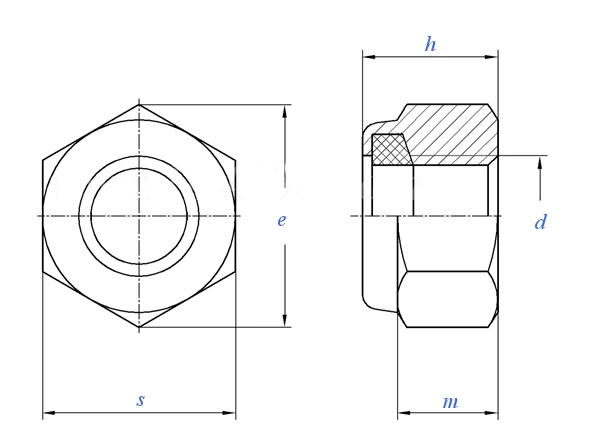

Dimensions in inches

Nominal diameter
d

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

7/8

1

1-1/8

1-1/4

1-3/8

1-1/2

d
PP	UNC
s	Maximum
s	Minimum
e	Minimum
h	Maximum
h	Minimum
m	Minimum

0.2500	0.3125	0.3750	0.4375	0.5000	0.5625	0.6250	0.7500	0.8750	1.0000	1.1250	1.2500	1.3750	1.5000
20	18	16	14	13	12	11	10	9	8	7	7	6	6
0.439	0.502	0.564	0.627	0.752	0.877	0.940	1.064	1.252	1.440	1.627	1.815	2.008	2.197
0.430	0.489	0.551	0.616	0.736	0.861	0.922	1.052	1.239	1.427	1.614	1.801	1.973	2.159
0.482	0.552	0.622	0.698	0.837	0.978	1.051	1.191	1.403	1.615	1.826	2.038	2.232	2.444
0.328	0.359	0.468	0.468	0.609	0.656	0.765	0.890	0.999	1.078	1.203	1.422	1.609	1.640
0.298	0.329	0.438	0.438	0.579	0.626	0.735	0.860	0.969	1.016	1.141	1.360	1.547	1.578
0.225	0.250	0.335	0.324	0.464	0.469	0.593	0.742	0.790	0.825	0.930	1.125	1.282	1.313
