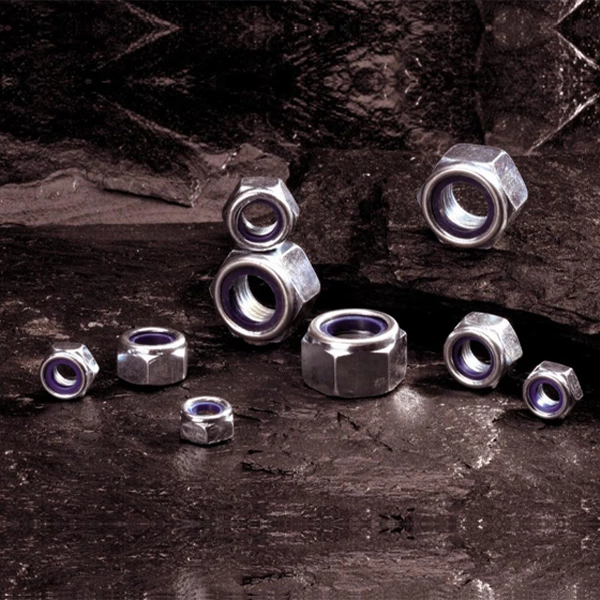

Nylon lock nut DIN985

Material：
Carbon steel, Stainless steel
Size：
M3-M48
Surface Treatment：
Galvanizing
Enquiry
Nylon lock nut DIN985
Nylon lock nut DIN985
Nylon lock nut DIN985
Nylon lock nut DIN985

Nylon lock nut DIN985

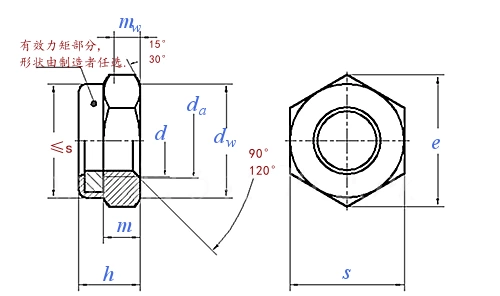

Dimensions in mm

Thread size
d
M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18
P Pitch Coarse teeth
Fine teeth 1
Fine teeth 2
da Minimum
Maximum
dw Minimum
e Minimum
h Maximum value = nominal
Minimum
m Minimum
mw Minimum
s Maximum value = nominal
Minimum
Thousand pieces weight kg
0.5 0.7 0.8 1 1 1.25 1.5 1.75 2 2 2.5
/ / / / / 1 1 1.5 1.5 1.5 2
/ / / / / / 1.25 1.25 / / 1.5
3 4 5 6 7 8 10 12 14 16 18
3.45 4.6 5.75 6.75 7.75 8.75 10.8 13 15.1 17.3 19.5
4.6 5.9 6.9 8.9 9.6 11.6 15.6 17.4 20.5 22.5 24.9
6.01 7.66 8.79 11.05 12.12 14.38 18.9 21.1 24.49 26.75 29.56
4 5 5 6 7.5 8 10 12 14 16 18.5
3.7 4.7 4.7 5.7 7.14 7.64 9.64 11.57 13.3 15.3 17.66
2.4 2.9 3.2 4 4.7 5.5 6.5 8 9.5 10.5 13
1.65 2.2 2.75 3.3 3.85 4.4 5.5 6.6 7.7 8.8 9.9
5.5 7 8 10 11 13 17 19 twenty two twenty four 27
5.32 6.78 7.78 9.78 10.73 12.73 16.73 18.67 21.67 23.67 26.16
0.5 1 1.4 2.4 3 5.1 10.6 17.2 26 34 45
Thread size
d
M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48
P Pitch Coarse teeth
Fine teeth 1
Fine teeth 2
da Minimum
Maximum
dw Minimum
e Minimum
h Maximum value = nominal
Minimum
m Minimum
mw Minimum
s Maximum value = nominal
Minimum
Thousand pieces weight kg
2.5 2.5 3 3 3.5 3.5 4 4 4.5 4.5 5
2 2 2 2 2 2 3 3 3 3 3
1.5 1.5 / / / / / / / / /
20 twenty two twenty four 27 30 33 36 39 42 45 48
21.6 23.7 25.9 29.1 32.4 35.6 38.9 42.1 45.4 48.6 51.8
27.7 29.5 33.2 38 42.7 46.6 51.1 55.9 60.6 64.7 69.4
32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44 72.09 76.95 82.6
20 twenty two twenty four 27 30 33 36 39 42 45 48
18.7 20.7 22.7 25.7 28.7 31.4 34.4 37.4 40.4 43.4 46.4
14 15 15 17 19 twenty two 25 27 29 32 36
11 12.2 13.2 14.8 16.5 18.2 19.8 21.5 23.1 24.8 26.5
30 32 36 41 46 50 55 60 65 70 75
29.16 31 35 40 45 49 53.8 58.8 63.8 68.1 73.1
65 75 100 162 212 317 415 499 628 771 998
