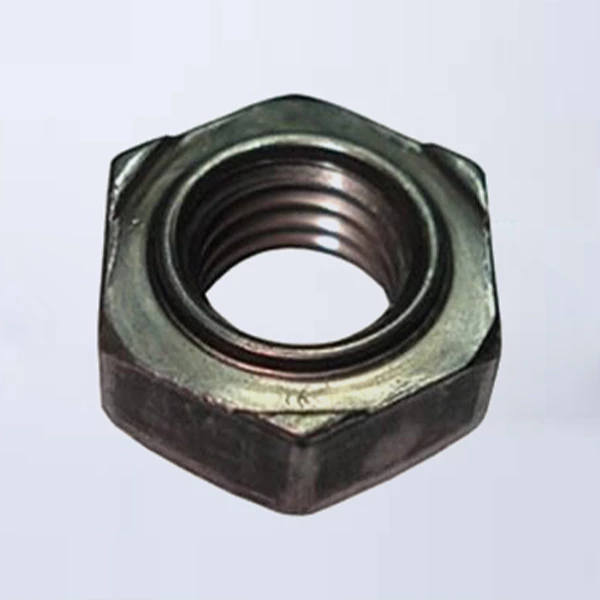

Hexagonal weld nut DIN929

Material：
Carbon steel, Stainless steel
Size：
M4-M16
Surface Treatment：
True Color
Enquiry
Hexagonal weld nut DIN929
Hexagonal weld nut DIN929

Hexagonal weld nut DIN929

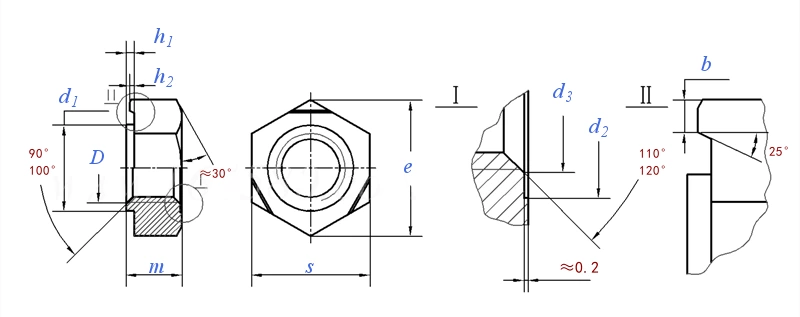

Dimensions: mm

Thread specification
D
M3 M4 M5 M6 M8 M10 7/16
20 UNF-2B ①		 7/16
20 UNF-2B ①		 M12 (M14) M16
P Pitch Coarse teeth
Fine teeth 1
Fine teeth 2
b Nominal
Maximum
Minimum
d1 Nominal (d11)
Maximum
Minimum
d2 Minimum value = nominal (H13)
Maximum
d3 Maximum
e Minimum
h1 Maximum
Minimum
h2 Maximum
Minimum
m Maximum value = nominal (h14)
Minimum
s Maximum value = nominal (h13)
Minimum
Thousand pieces weight (steel) ≈ kg
Guaranteed load (N) Coarse teeth
Fine teeth 1
Fine teeth 2
0.5 0.7 0.8 1 1.25 1.5 / / 1.75 2 2
/ / / / 1 1.25 / / 1.25 1.5 1.5
/ / / / / 1 * * 1.5 / /
0.80 0.80 0.80 0.90 1.00 1.25 1.25 1.25 1.25 1.50 1.50
1.00 1.00 1.00 1.12 1.25 1.55 1.55 1.55 1.55 1.90 1.90
0.60 0.60 0.60 0.68 0.75 0.95 0.95 0.95 0.95 1.10 1.10
4.50 6.00 7.00 8.00 10.50 12.50 12.50 13.50 14.80 16.80 18.80
4.47 5.97 6.96 7.96 10.45 12.45 12.45 13.45 14.75 16.75 18.735
4.395 5.895 6.87 7.87 10.34 12.34 12.34 13.34 14.64 16.64 18.605
4.50 6.00 7.00 8.00 10.50 12.50 13.50 13.50 14.80 16.80 18.80
4.68 6.18 7.22 8.22 10.77 12.77 13.77 13.77 15.07 17.07 19.13
3.15 4.2 5.25 6.3 8.4 10.5 11.7 11.7 12.6 14.7 16.8
8.15 9.83 10.95 12.02 15.38 18.74 18.74 20.91 20.91 24.27 26.51
0.55 0.65 0.7 0.75 0.9 1.15 1.15 1.4 1.4 1.8 1.8
0.45 0.55 0.6 0.6 0.75 0.95 0.95 1.2 1.2 1.6 1.6
0.25 0.35 0.4 0.4 0.5 0.65 0.65 0.8 0.8 1 1
0.15 0.25 0.3 0.3 0.35 0.5 0.45 0.6 0.6 0.8 0.8
3 3.5 4 5 6.5 8 10 10 10 11 13
2.75 3.2 3.7 4.7 6.14 7.64 9.64 9.64 9.64 10.57 12.57
7.5 9 10 11 14 17 17 19 19 twenty two twenty four
7.28 8.78 9.78 10.73 13.73 16.73 16.73 18.67 18.67 21.67 23.67
0.78 1.13 1.73 2.5 5.27 9.58 12 14 13.7 21.3 28.5
3800 6800 11000 15500 28300 44800 / / 65300 89700 123000
/ / / / 30200 47800 / / 72100 97500 132000
/ / / / / 50200 53600 53600 68200 / /
